The majority of other chemicals not assessed at regional sea scale are below concentrations likely to have impacts on the environment or human health. Some pesticides that are banned are showing decreasing trends; however other pesticides require further assessment across the UK. Tributyltin remains a risk in the environment, however imposex is decreasing in four of five areas of the UK.

Background

Two additional data sources have been used to provide a wider assessment of the status of chemicals in coastal waters. These are

Data taken from assessments of chemicals in water considered under Water Framework Directive Regulations (WFDR) from England, Northern Ireland, Scotland and Wales and,

Data of chemicals in sediment and biota collated by OSPAR that have too short timescales to be included in the regional assessment, but can be used in a more descriptive analysis

Further information

Further details of these chemical sources, transport, impact and measures can be found at Annex C of the Welsh Planning Overview, River Basin Management Plan (2022) and at individual challenges for the water environment 2021 reports for England for Polycyclic aromatic hydrocarbons (PAHs) ; Polybrominated diphenyl ethers (PBDEs); Cypermethrin; Perfluorooctane sulfonate (PFOS), and Mercury.

Assessment method

The 2 data sources have been assessed as follows:

Data from WFDR has been collated from the most recent waterbody classification results. Common standards exist across England, Northern Ireland, Scotland and Wales, however the way in which they have been applied may differ. Please refer to the methodology used by each administration for detail.

Data collated as part of the OSPAR assessment process in sediment and biota for chemicals that do not have sufficient evidence to be considered for regional assessment. 2 assessments have been carried out:

‘Status’ assessment of the significance of the (risk of) pollution, defined as the status where chemicals are at a hazardous level, usually requires assessment criteria that take account of the possible severity of the impacts and hence require criteria that take account of the natural conditions, as background assessment concentrations (BAC); and concentrations that are likely to have an impact on species or human health or as Environmental Quality Standard (EQS). Please refer to assessment criteria in biota and assessment criteria in sediment for further information on the standards used in status assessments.

‘Trend assessment’ at each site to focus on changes on temporal scales – provides information about the rates of change. The assessment is only made for sites that have sufficient data.

Results are not presented at a regional sea scale as there is not sufficient data to draw accurate conclusions.

Results

The compliance for chemicals assessed in water for the WFDR is presented in Figure 1. 59 chemicals, or groups of chemicals, have been assessed. The maximum number of water bodies assessed was 66 for hexochlorobenzene and the minimum was 3. All waterbodies pass, except for the 5 chemicals shown in more detail in Table 1.

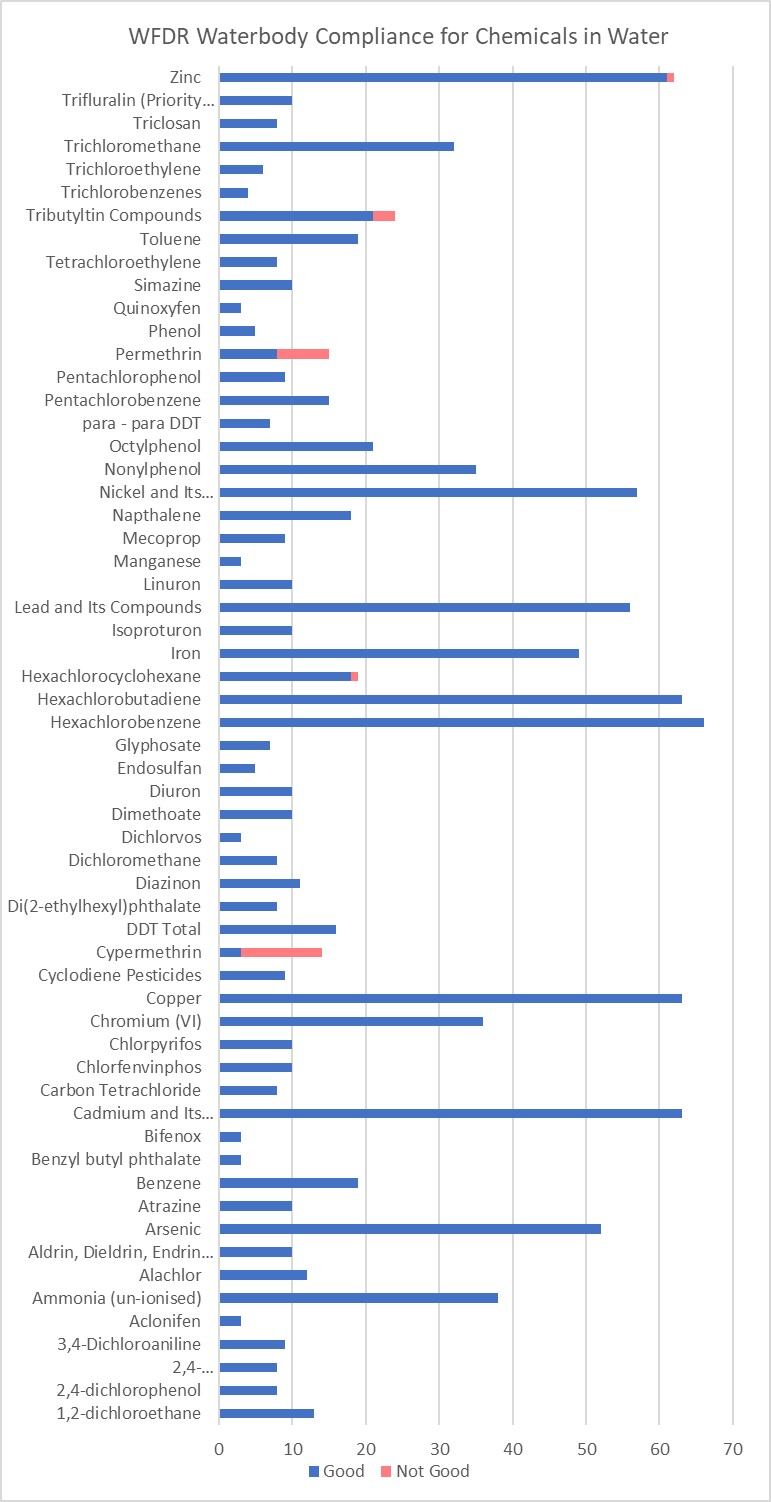

A graph showing the UK waterbody compliance for an array of chemicals in the water column. Not good status was observed for 5 chemicals in some waterbodies. These chemicals are listed in Table 1.

Figure 1: WFDR waterbody compliance for chemicals in water.

Table 1. Chemicals assessed that have 1 or more waterbody failure.

Chemicals	Good	Not Good
Cypermethrin	3	11
Hexachlorocyclohexane	18	1
Permethrin	8	7
Tributyltin Compounds	21	3
Zinc	61	1

The cypermethrin and permethrin exceedances are largely confined to waterbodies monitored in Northern Ireland. Further investigation is required to determine if these localised failures are due to analytical differences across the UK or specific source and use patterns in Northern Ireland. The failure for zinc is currently being investigated but likely to be associated with abandoned metal mines in Wales.

The range of chemicals in sediment and biota taken for OSPAR that have sufficient data for trend analysis and standards from which an assessment can be made, but not able to be used for regional assessment, shows that:

Concentrations of Dichlorodiphenyldichloroethylene (DDE), a breakdown product of the banned pesticide DDT, remain above background in biota and sediment but of those sites that have sufficient biota data for trend assessment 11 show a downward trend, 11 no trend and 1 and upward trend suggesting that the source control measures are effective.

The fungicide hexachlorobenzene has been assessed in sediment and biota and shows that most sites are above the BAC in sediment but remain below the EAC in biota. Of the sites that have sufficient data for trend assessment 6 show downward trend and 16 show no trend suggesting that concentrations in the environment are decreasing and no longer pose a risk to the environment.

Sediment assessments of the flame-retardant gamma-hexabromocyclododecane show that 29 sites are above the BAC and 20 are below. Of the five sites assessed for biota, 3 are below the BAC, 1 is above the BAC and below the EAC and 1 is above the EAC. The risk from hexabromocyclododecane is largely considered to be low and source control measures put in place by the Stokholm convention in 2013 are effective.

The banned insecticide dieldrin has been assessed in sediment and all sites, except 1, are above the BAC reflecting its persistence in the environment. Perfluorooctanyl sulphonic acid (a PFAS chemical) in biota is at concentrations below the EAC suggesting that concentrations are currently not at levels that may impact on species.

All sites assessed for Tributyltin (TBT) are above EAC for sediment and biota and 3 of the 24 waterbodies show that concentrations are greater than the EQS. TBT is toxic to many marine organisms at very low concentrations and is unequivocally linked to reduced reproductive performance in several marine snail species. Since the mid-1980s, a range of national and international measures has resulted in the phasing out of paints containing TBT in the OSPAR Maritime Area. In 2008, a global ban on the use of organotins in antifouling paints on all marine boats and ships, regardless of size, came into effect. The imposex indicator assessment (insert link to MOAT page of Imposex indicator assessment) which gives a better indication of risk to species, shows that imposex status was below the Background Assessment Criteria in the Irish Sea; elevated above background but below the Environmental Assessment Criteria in the Northern North Sea, Minches and Western Scotland and the Western Channel and Celtic Sea; and above the Environmental Assessment Criteria in the Eastern Channel.

At a UKMS subregion level, 57% of stations in the Greater North Sea and 86% of stations in the Celtic Seas were below the Environmental Assessment Criteria. In the Greater North Sea 86% of stations were stable and a significant downward trend was observed at 14% of stations. In the Celtic Seas, 39% of stations were stable and 61% had a significant downward trend. Further controls on TBT are unlikely to be effective, and impacts are decreasing with time, however in the eastern Channel concentrations remain high and imposex remains a concern.

Conclusions

The majority of wider chemicals in water, sediment and biota do not exceed environmental quality standards and do not pose a risk to biodiversity or human health. This demonstrates that for the chemicals considered the current controls are largely sufficient to protect the environment. Whilst some banned pesticides are showing downward trends due to source control, further investigation and potential controls are required for cypermethrin and permethrin in coastal waters. Tributyltin exceeds environmental quality standards in water, sediment and biota but the results from the imposex indicator assessment suggests that was not at a level that was causing significant harm in four out of the five biogeographic regions assessed.

Knowledge gaps

The assessment of wider chemicals includes those that are already considered under OSPAR or WFDR however there is an ever-growing list of chemicals that are considered emerging. These include pharmaceuticals, a wider range of PFAS chemicals and pesticides; however, some of these chemicals do not currently have formal EQS but are being considered for further regulation based on current evidence and research. The Environment Agency are currently considering broadening out the participation in their Priority and Early Warning System (PEWS) to the other UK administrations to broaden the evidence base and promote consistency in risk assessment of emerging chemicals. Those that pose a risk will then be considered for regulation in WFDR or within OSPAR and maybe considered for future UK Marine Strategy Assessments.

Whilst source control is most effective for limiting chemicals in the environment, the impact of climate change on the existing status and trends of chemicals is developing but requires further significant research so we can understand risks.

The effects of mixtures of chemicals and inter-pressure effects on ecosystems (such as chemicals plus excess nutrients) is better understood but has yet to be considered in assessment.

References

Cypermethrin: challenges for the water environment (2021) (available at https://www.gov.uk/government/publications/cypermethrin-challenges-for-the-water-environment)

Polybrominated diphenyl ethers (PBDEs): challenges for the water environment (2021). (available at https://www.gov.uk/government/publications/polybrominated-diphenyl-ethers-pbdes-challenges-for-the-water-environment )

Polycyclic aromatic hydrocarbons (PAHs): challenges for the water environment (2021). (available at https://www.gov.uk/government/publications/polycyclic-aromatic-hydrocarbons-pahs-challenges-for-the-water-environment)

Perfluorooctane sulfonate (PFOS): challenges for the water environment (2021). (available at https://www.gov.uk/government/publications/perfluorooctane-sulfonate-pfos-challenges-for-the-water-environment)

Mercury: challenges for the water environment (2021). (available at https://www.gov.uk/government/publications/perfluorooctane-sulfonate-pfos-challenges-for-the-water-environment)

Natural Resources Wales 2022. River Basin Management Plan Overview Annex Wales. https://cdn.cyfoethnaturiol.cymru/695980/wales-rbmp-overview-annex-2021-2027.pdf
